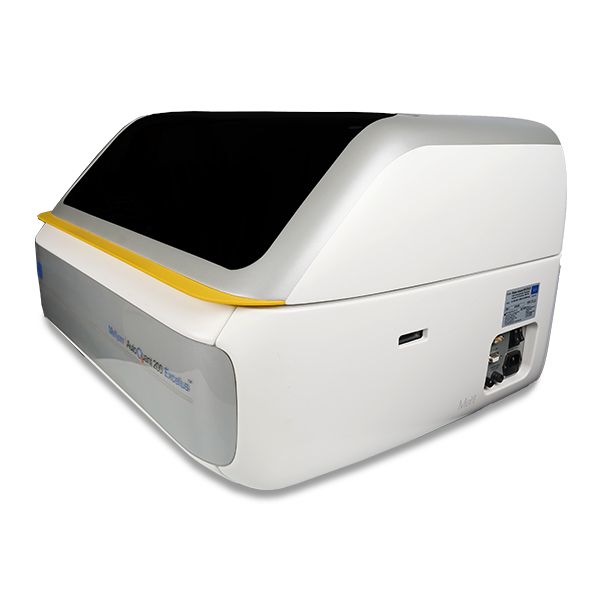

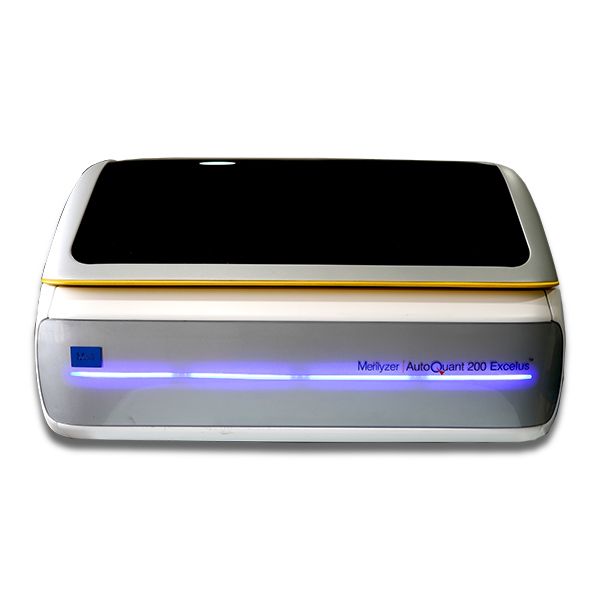

Fully automated analyzer with throughout of 200 tests per hour.
Compact model with inbuilt laundry and cooling facility for Reagents.
Ideal for a medium size laboratory for routine tests and as backup for bigger laboratories.
Its unique software, feature offers user defined reflex action.
User friendly Fully Auto Analyzer.
Key Features
System Packs
FAQs
What is the through put?
How many reaction positions?
How many Reagents positions & sample positions?
How many probe do AQ 200 Excelus have?
How much water consumption?
Can Turbidimetry Immunoassay Assay tests be performed?
What is the advantage of AutoQuant 200 Excelus pack-size?
What is maintenance?
How often should we run the control?
What is the cuvette material?
What is the cuvette life?
What is the advantage of hard glass cuvette?
What is the bulb life?
Can primary tubes be used for samples?
What is Service TAT & application support?
What is the CPRT (Cost per reportable test)?
What is CPT (Cost per test)?
Product Details
Technical
Specifications
| Throughput | Double Reagent: Max 200 Tests/hour, Single Reagent: Max 240 Tests/hour, ISE Optional |
|---|---|
| System Functions | Analysis method: End Point, Fixed Time (2-point), Kinetic Rate-A, Kinetic Rate-B |
| Assay modes: Colorimetry, Turbidimetry, Single and Double reagent, Multi-standard, Mono and Bi-Chromatic | |
| Sample / Reagent Processing | Sample position: 30 |
| Sample volume: 2 - 50 µl (0.1 µl step) | |
| Sample dilution: 2 to 40 times | |
| Reagent position: 30 for R1 and R2 | |
| Reagent volume: Reagent 1: 180-350 µl (Adjustable in 1 µl step), Reagent 2: 0 or 10-350 µl (Adjustable in 1 µl step) | |
| Reaction System | Reaction cuvette: 60 (semi-disposable) |
| Cuvette washing: Onboard laundry with 7-step washing system | |
| Water consumption: 5 - 6 litres/hour | |
| Optical length of cuvette: 6 mm | |
| Reaction volume: 180 - 550 µl | |
| Reaction time: 30 to 600 sec (Depending on cycle time & number of reagents) | |
| Reaction temperature: 37°C ± 0.2°C | |
| Optical System | Measurement principle: Photometry |
| Light source: Halogen Tungsten lamp with fiber optics | |
| Wavelength: Total 9 filters (340, 405, 450, 510, 546, 578, 620, 670, 700 nm) | |
| Detector: Silicon photodiode | |
| Absorbance range: 0 - 3.0 Abs | |
| Resolution: 0.0001 Abs | |
| Calibration | K-Factor, Linear (one, two, and multi-point), Logit-log, Spline, Exponential, Polynomial (second, third, and fourth order) |
| Calibration points: Multipoint curves for up to 6 points by repeat run list or auto execution | |
| Auto re-run: Auto execution according to abnormal marking or range over | |
| Data Storage | Test results: Unlimited tests |
| Reaction curve: Unlimited tests | |
| Profiles: 20 per sample type | |
| Within day & day-to-day X and X-R control diagram (L-J Graph) | |
| Quality Control | Real-time quality control based on Multi-rule method (mean, SD, %CV, R) for all parameters of sample replicates |
| Working Conditions | Power supply: 110/220 VAC, 50/60 Hz (Max. Power 250 W) |
| Temperature: 10°C - 30°C | |
| Humidity: 40% - 80% free from water dew formation | |
| Operation System | Windows XP, Windows 7, Windows 8, Windows 10, or Winfix |
| Input and Output | Input: RS 232 interface/computer |
| Output: Multiformat printout | |
| Dimensions | 550 mm (W) × 420 mm (D) × 380 mm (H) |
| Weight | Approx. 23 kgs |
